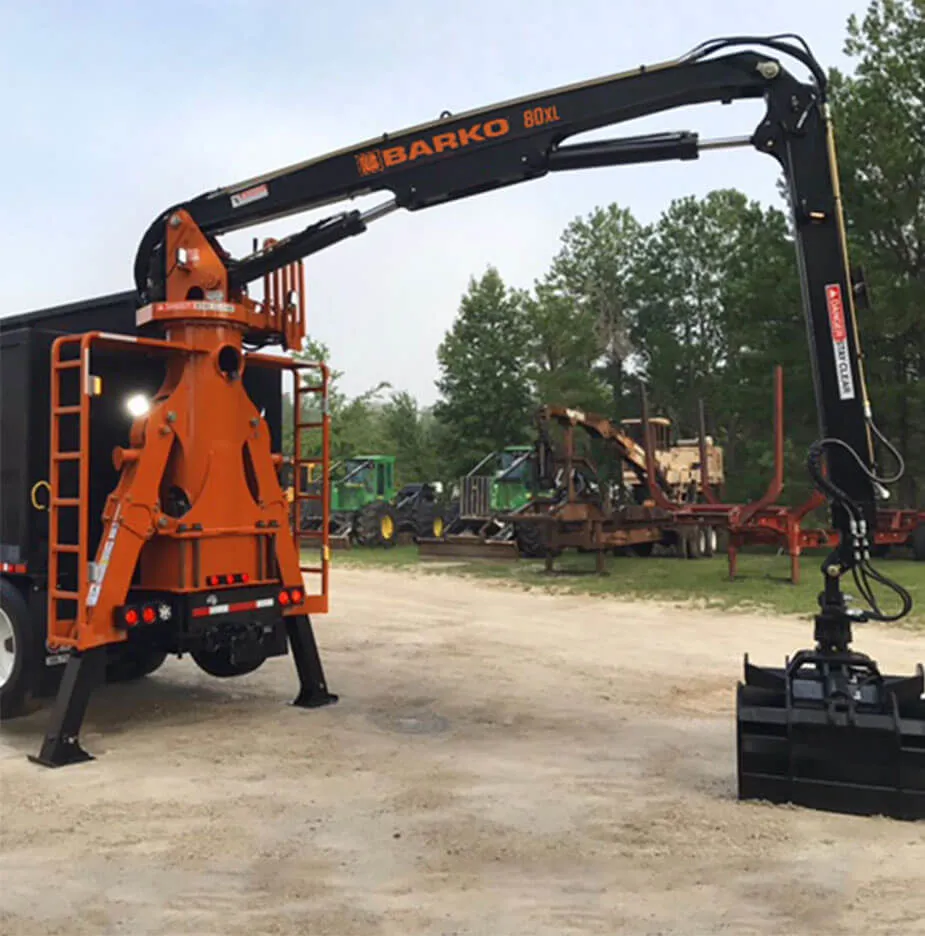

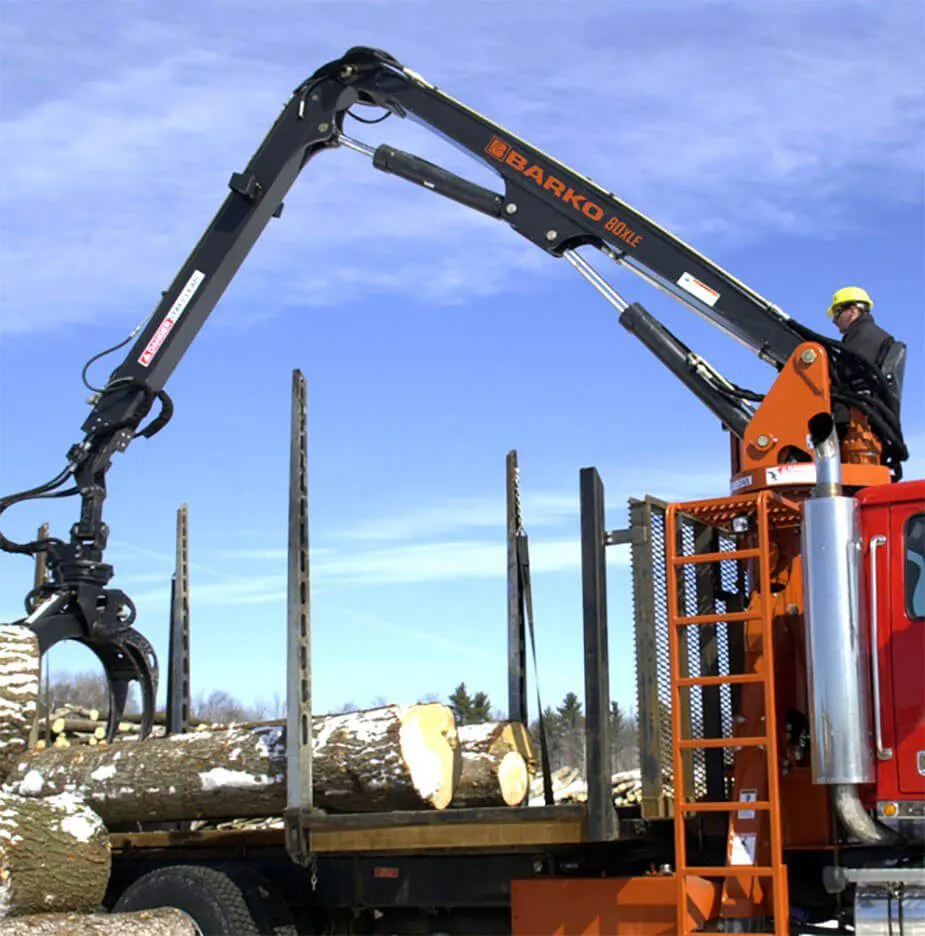

The Barko 80XL back of cab knuckleboom loader delivers exceptional productivity day in and day out. Engineered with efficiency in mind, the machine offers a maximum front lift capacity of 9,880 pounds.
Lift capacity, XL (22' boom):
18,860 lbs (8,555 kg) with 10' (3.0 m) radius
12,730 lbs (5,774 kg) with 15' (4.6 m) radius
9,580 lbs (4,345 kg) with 20' (6.1 m) radius
6,570 lbs (2,980 kg) with 25' (7.6 m) radius
2,500 lbs (1,134 kg) at full reach
Lift capacity, XLE (25' boom):
10,450 lbs (4,740 kg) with 5' (1.5 m) radius
9,540 lbs (4,327 kg) with 10' (3.0 m) radius
6,370 lbs (2,889 kg) with 15' (4.6 m) radius
4,670 lbs (2,118 kg) with 20' (6.1 m) radius
1,250 lbs (566 kg) at full reach
